THE PROTOTYPE M-19'S EXTERIOR (Page 1 of 2)
revised March 17, 1999

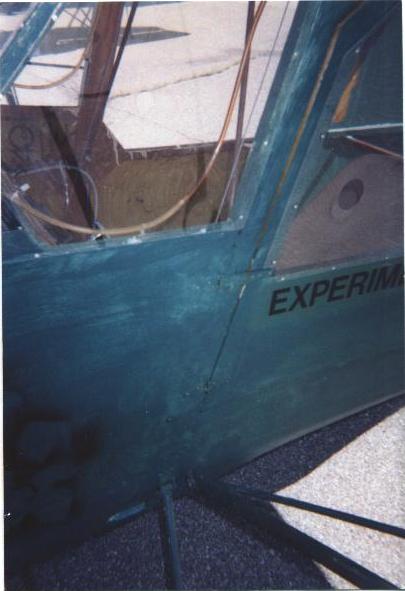

Door, door hinges, strut and landing gear attach fittings, windows.

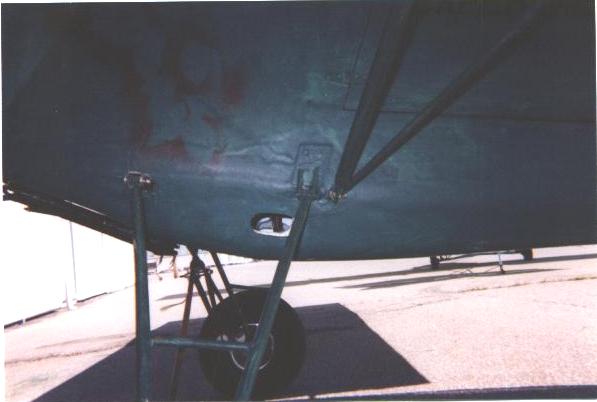

Belly, main gear attach, wing strut attach, control stick inspection hole, oil cooler.

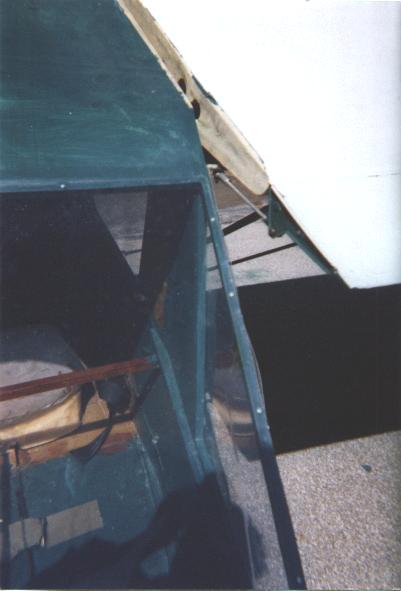

Rear window, seat, aileron bellcrank, wing gap. Brown crosspiece visible behind seat is used to secure ballast for CG range experimentation.

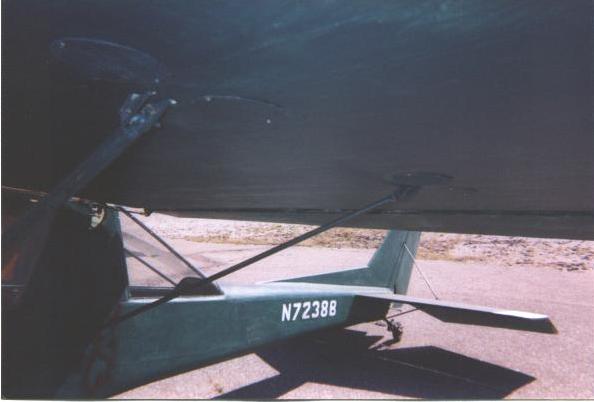

Wing struts, inspection covers for strut attach fittings; empennage and rear window.

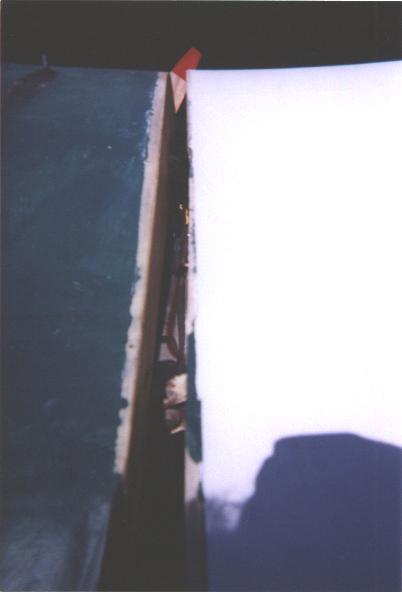

Wing gap. Marvin uses aluminum strips to cover.

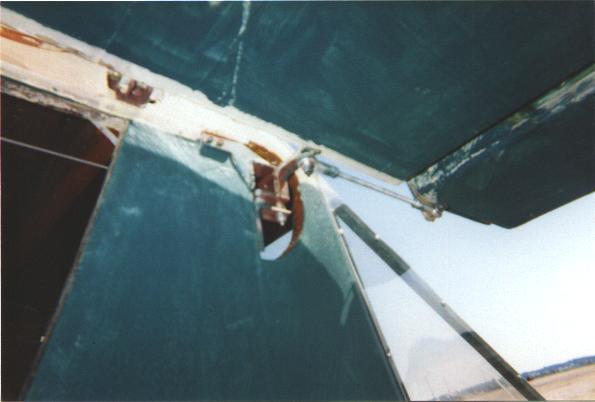

Aileron bellcranks, wing gap, rear spar attach/hinge fitting.
